C# Round Border Fill Panel



라운드된 외곽선이 있는 패널 컨트롤

• 외곽선 두께/색상 지정 가능
• 코너 라운드 값 지정 가능
• 배경색 지정 가능



RoundBorderPanel.cs

using System;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Windows.Forms;

namespace SrcTree {
    public class RoundBorderPanel : Panel
    {
        public int padding = 5;
        public int radius = 10;
        public bool isBorder = true;
        public Color borderColor = Color.FromArgb(128, 51, 94, 129);
        public int borderWidth = 5;
        public bool isFill = false;
        public Color fillColor = Color.FromArgb(128, 243, 246, 251);

        public RoundBorderPanel() {
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            base.OnPaint(e);

            Graphics g = e.Graphics;
            g.SmoothingMode = SmoothingMode.AntiAlias;
            if(isFill) {
                g.FillRoundedRectangle(new SolidBrush(fillColor), padding, padding, this.Width - padding * 2, this.Height - padding * 2, radius);
            }
            if(isBorder) {
                g.DrawRoundedRectangle(new Pen(borderColor, borderWidth), padding, padding, this.Width - padding * 2, this.Height - padding * 2, radius);
            }
        }

        //패널윈도우에 투명속성 추가
        const int WS_EX_TRANSPARENT = 0x20;
        protected override CreateParams CreateParams {
            get {
                var cp = base.CreateParams;
                cp.ExStyle |= WS_EX_TRANSPARENT;
                return cp;
            }
        }
    }

    static class GraphicsExtension
    {
        private static GraphicsPath GenerateRoundedRectangle(
            this Graphics graphics,
            RectangleF rectangle,
            float radius)
        {
            float diameter;
            GraphicsPath path = new GraphicsPath();
            if (radius <= 0.0F)
            {
                path.AddRectangle(rectangle);
                path.CloseFigure();
                return path;
            }
            else
            {
                if (radius >= (Math.Min(rectangle.Width, rectangle.Height)) / 2.0)
                    return graphics.GenerateCapsule(rectangle);
                diameter = radius * 2.0F;
                SizeF sizeF = new SizeF(diameter, diameter);
                RectangleF arc = new RectangleF(rectangle.Location, sizeF);
                path.AddArc(arc, 180, 90);
                arc.X = rectangle.Right - diameter;
                path.AddArc(arc, 270, 90);
                arc.Y = rectangle.Bottom - diameter;
                path.AddArc(arc, 0, 90);
                arc.X = rectangle.Left;
                path.AddArc(arc, 90, 90);
                path.CloseFigure();
            }
            return path;
        }
        private static GraphicsPath GenerateCapsule(
            this Graphics graphics,
            RectangleF baseRect)
        {
            float diameter;
            RectangleF arc;
            GraphicsPath path = new GraphicsPath();
            try
            {
                if (baseRect.Width > baseRect.Height)
                {
                    diameter = baseRect.Height;
                    SizeF sizeF = new SizeF(diameter, diameter);
                    arc = new RectangleF(baseRect.Location, sizeF);
                    path.AddArc(arc, 90, 180);
                    arc.X = baseRect.Right - diameter;
                    path.AddArc(arc, 270, 180);
                }
                else if (baseRect.Width < baseRect.Height)
                {
                    diameter = baseRect.Width;
                    SizeF sizeF = new SizeF(diameter, diameter);
                    arc = new RectangleF(baseRect.Location, sizeF);
                    path.AddArc(arc, 180, 180);
                    arc.Y = baseRect.Bottom - diameter;
                    path.AddArc(arc, 0, 180);
                }
                else path.AddEllipse(baseRect);
            }
            catch { path.AddEllipse(baseRect); }
            finally { path.CloseFigure(); }
            return path;
        }

        public static void DrawRoundedRectangle(
            this Graphics graphics,
            Pen pen,
            float x,
            float y,
            float width,
            float height,
            float radius)
        {
            RectangleF rectangle = new RectangleF(x, y, width, height);
            GraphicsPath path = graphics.GenerateRoundedRectangle(rectangle, radius);
            SmoothingMode old = graphics.SmoothingMode;
            graphics.SmoothingMode = SmoothingMode.AntiAlias;
            graphics.DrawPath(pen, path);
            graphics.SmoothingMode = old;
        }

        public static void DrawRoundedRectangle(
            this Graphics graphics,
            Pen pen,
            int x,
            int y,
            int width,
            int height,
            int radius)
        {
            graphics.DrawRoundedRectangle(
                pen,
                Convert.ToSingle(x),
                Convert.ToSingle(y),
                Convert.ToSingle(width),
                Convert.ToSingle(height),
                Convert.ToSingle(radius));
        }

        public static void FillRoundedRectangle(
            this Graphics graphics,
            Brush brush,
            float x,
            float y,
            float width,
            float height,
            float radius)
        {
            RectangleF rectangle = new RectangleF(x, y, width, height);
            GraphicsPath path = graphics.GenerateRoundedRectangle(rectangle, radius);
            SmoothingMode old = graphics.SmoothingMode;
            graphics.SmoothingMode = SmoothingMode.AntiAlias;
            graphics.FillPath(brush, path);
            graphics.SmoothingMode = old;
        }

        public static void FillRoundedRectangle(
            this Graphics graphics,
            Brush brush,
            int x,
            int y,
            int width,
            int height,
            int radius)
        {
            graphics.FillRoundedRectangle(
                brush,
                Convert.ToSingle(x),
                Convert.ToSingle(y),
                Convert.ToSingle(width),
                Convert.ToSingle(height),
                Convert.ToSingle(radius));
        }
    }
}

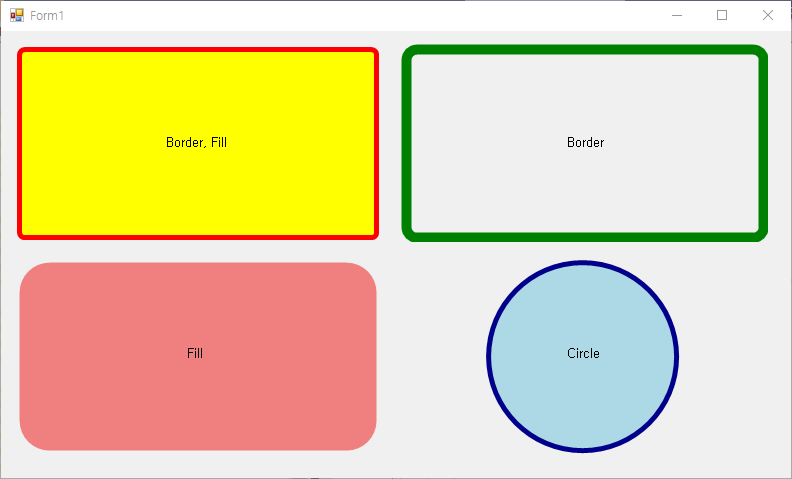

사용

panel1.isBorder = true;
panel1.isFill = true;
panel1.radius = 5;
panel1.borderWidth = 5;
panel1.borderColor = Color.Red;
panel1.fillColor = Color.Yellow;

panel2.isBorder = true;
panel2.isFill = false;
panel2.radius = 10;
panel2.borderWidth = 10;
panel2.borderColor = Color.Green;

panel3.isBorder = false;
panel3.isFill = true;
panel3.radius = 30;
panel3.fillColor = Color.LightCoral;

panel4.isBorder = true;
panel4.isFill = true;
panel4.radius = panel4.Width / 2;
panel4.borderWidth = 5;
panel4.borderColor = Color.DarkBlue;
panel4.fillColor = Color.LightBlue;
